Beam shaper

DATA SHEET 다운로드 http://www.pishaper.com/shaper_12_12.php

πShaper 12_12 series

Series of high efficient Beam Shapers converting Gaussian to Flattop profile lasers of UV, Visible and NIR spectrum

Most important specific needs of applications based on the UV-lasers as well as Short-pulse Ti:Sapphire lasers are taken into account while developing the piShaper 12_12 systems

Application

- Free Electron Lasers

- Fluorescence Technologies

- Flying Plate Technique

- Display Making Technologies

- Mass-Spectrometry

- Ultrashort Pulse Laser Pumping

- MOPA Techniques

- Material processing

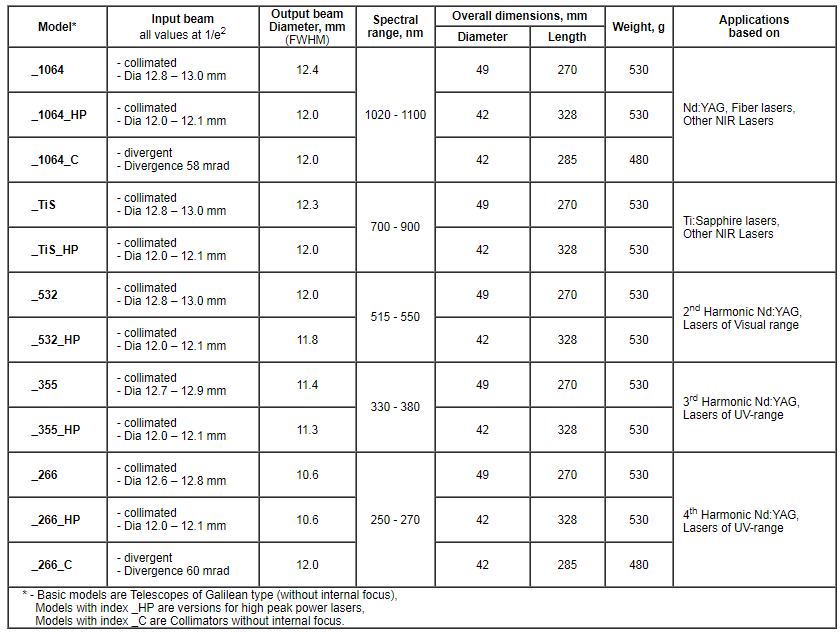

Technical Specification

Features

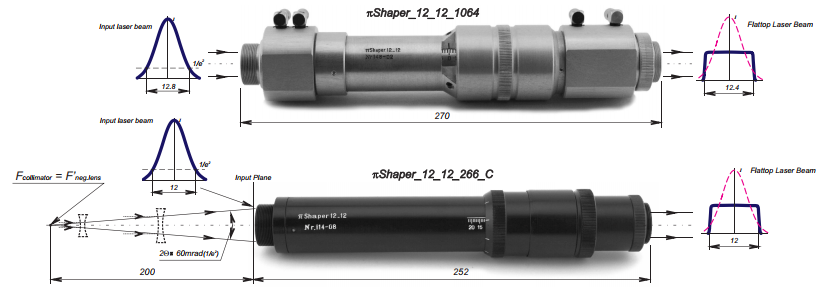

Basic Principles of piShaper 12_12 operation

- piShaper transforms Gaussian or similar intenstiry distriburion of source laser beam to a flattop one

- TEM00 or multimode with Gaussian or similar intensity profile can applied

- Achromatic design provides this transformation for a certain wavelength range.

- Galilean design, thus there are no intermediate focusing of a beam.

- There are two versions of the piShaper 12_12 systems : Telescop and Collimator

- With changing the size of input beam, the output beam profile changes as well.

- When changing the shape of input beam it is possible to adapt the piShaper to provide flattop output profile, this adaptation

is realized thruogh changing the diameter of source beam.

- Versions of the piShaper 12_!2 for other wavelengths ranges are, also, available.
