Beam shaper

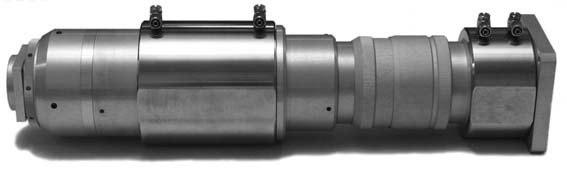

πShaper 37_34_1064

Collimator - Beam Shaper

Converting Gaussian to Flattop profile

Nd:YAG, Fiber and other near-IR lasers

Applications

- Welding

- Cladding

- Brazing

- Annealing

- Hardening

- Display Making Technologies

- Technologies where uniform intensity required

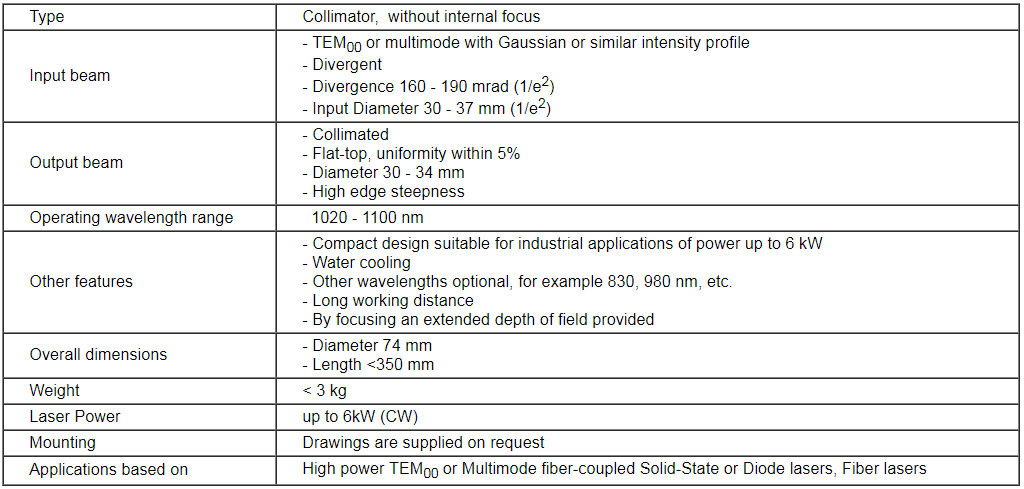

Technical Specification

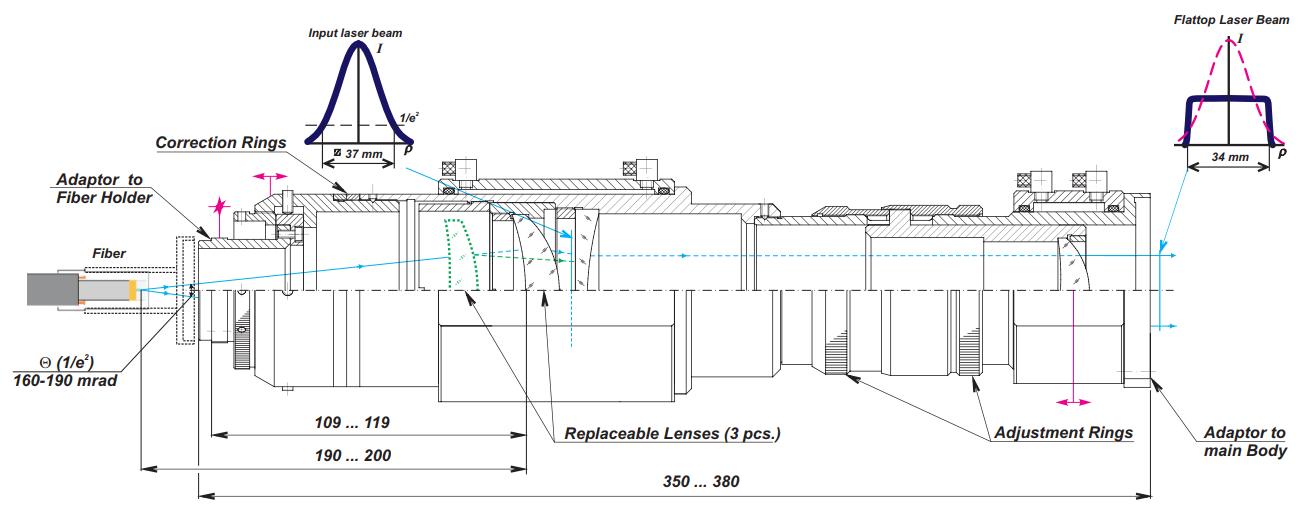

Basic principles of πShaper operation

- piShaper transforms Gaussian or similar intensity distribution of source laser beam to a flattop one.

- TEM00 or multimode input beams are accepted.

- Galilean design, thus there are no intermediate focusing of a beam

- Combining of 2 functions : Beam Shaping and Collimation of a divergent beam from a fiber.

- Changing the input divergence (or beam size) leads to chaning of the ouput beam profile;

- When changing the shape of input beam it is possible to adapt the piShaper to provide flattop output profile,

this adaptation is realized through changing the diameter of source beam;

- Bersions of the piShaper 37_34_1064 for other wavelengths are, also, available.
